Electric Floor Crane
Electric Floor Crane
Electric Floor Crane
Electric Floor Crane

Electric Floor Crane

Rs.410,000.00

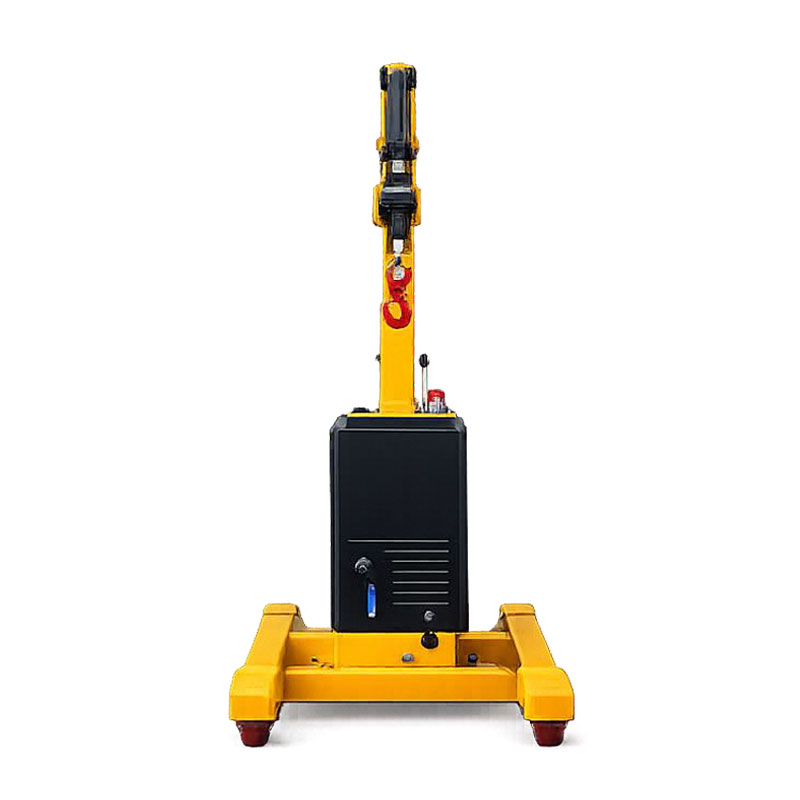

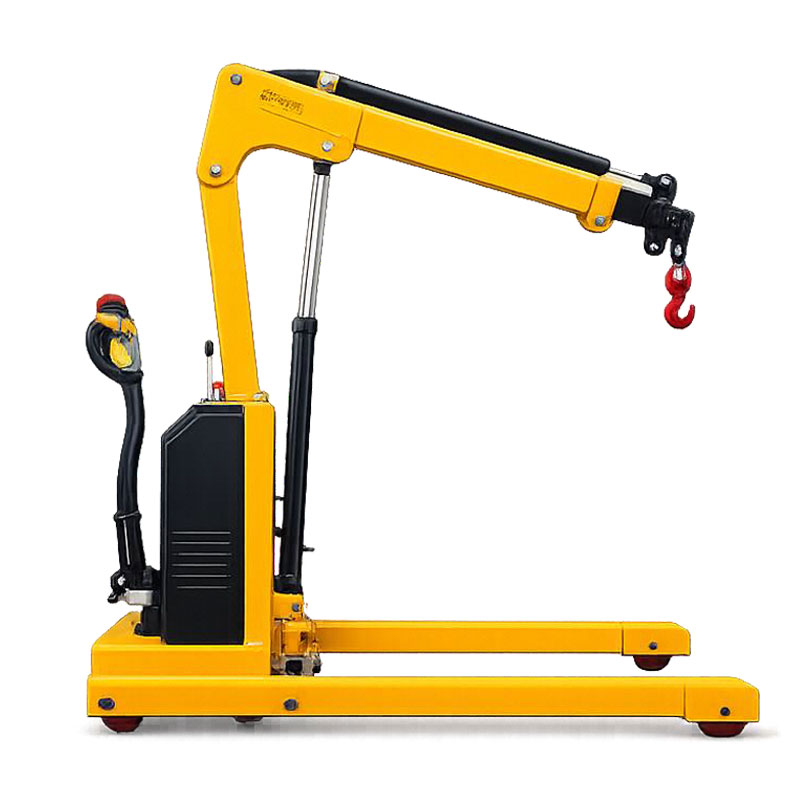

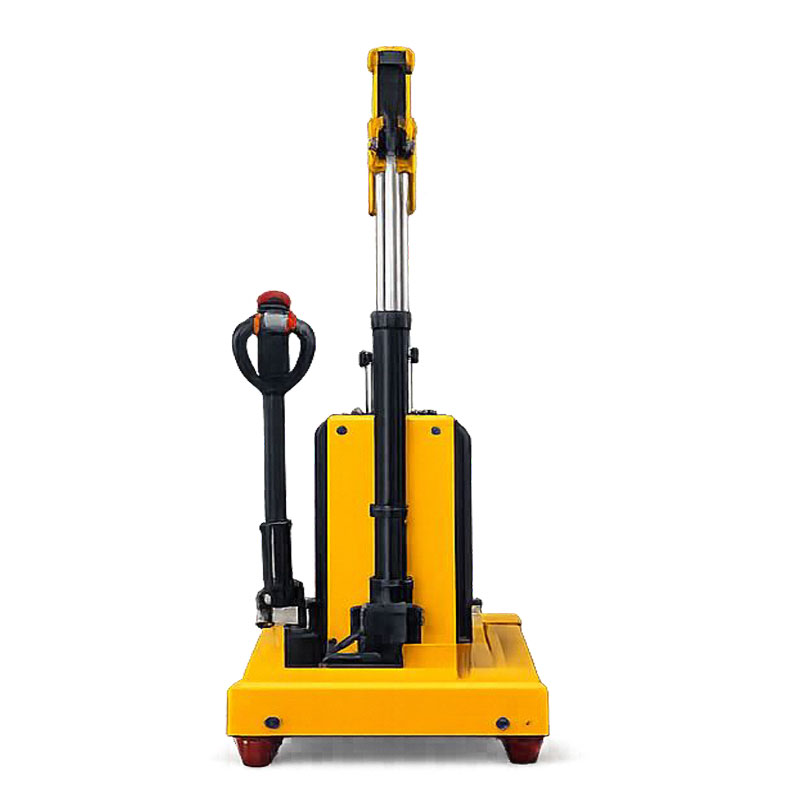

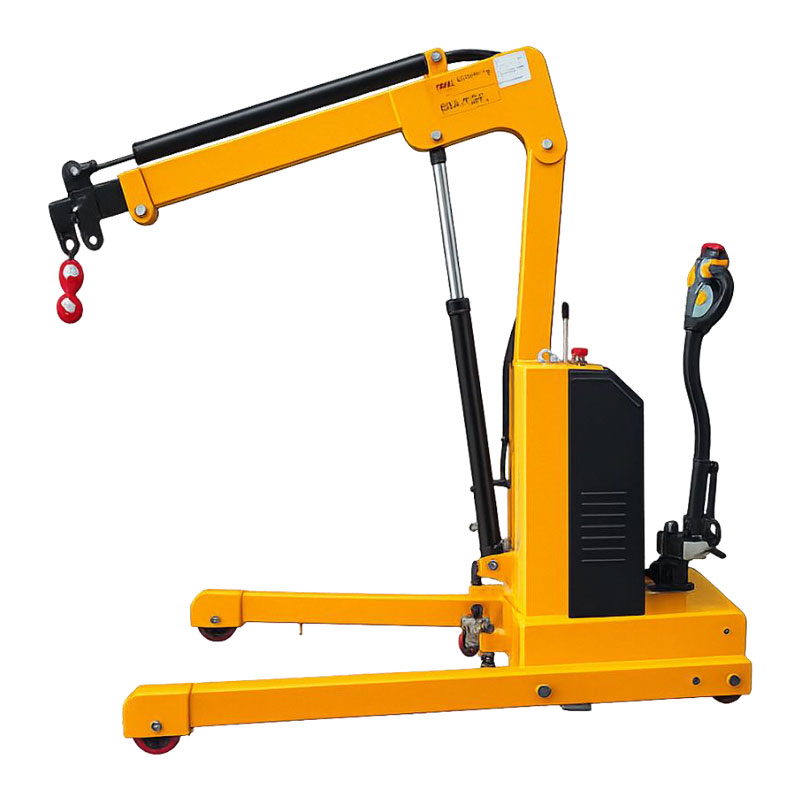

Rudra Equipment Electric Floor Crane is designed for smooth handling, easy operation, and maximum efficiency in material movement. Equipped with a fully electric drive system, electric hydraulic power pack, and telescopic adjustable boom, it offers safe and efficient lifting, loading, unloading, and positioning of heavy materials in warehouses, factories, workshops, and industrial facilities.

Category:
Description

Specifications:

Brand Rudra Equipment
Product Name Fully Electric Floor Crane
Model RE-121-1000KG
Safe Working Load (SWL) 1000 kg
Maximum Lifting Height 3100 mm
Minimum Hook Height Approx. 200 mm
Boom Type 6 Position Telescopic Adjustable Boom
Boom Length 1440 mm – 3100 mm
Boom Positions A, B, C, D, E & F
Hydraulic System Electric Hydraulic Power Pack
Drive Type Fully Electric Battery Operated
Travel Speed 4–5 km/h
Steering Ergonomic Electric Tiller Handle
Drive Motor 0.75 kW
Lift Motor 1.5 kW
Battery 24V / 65 Ah Lead Acid Battery
Charger 24V Automatic Charger
Wheel Type Heavy Duty Polyurethane (PU)
Brake System Electromagnetic Brake
Overall Width Approx. 1050 mm
Overall Length Approx. 1900 mm
Overall Weight Approx. 420–500 kg
Finish Powder Coated Yellow



Boom Position & Load Capacity Chart
Parameter Unit A B C D E F
0° Boom Length mm 1440 2300 2500 2700 2900 3100
0° Rated Load kg 1000 342 290 250 220 200
40° Boom Length mm 1004 1638 1787 1935 2083 2231
40° Rated Load kg 1100 565 430 345 290 250
Inner Size of Legs mm 985
Outer Size of Legs mm 1170
Movement – Up-Down & Left-Right Electric
Net Weight kg 568
