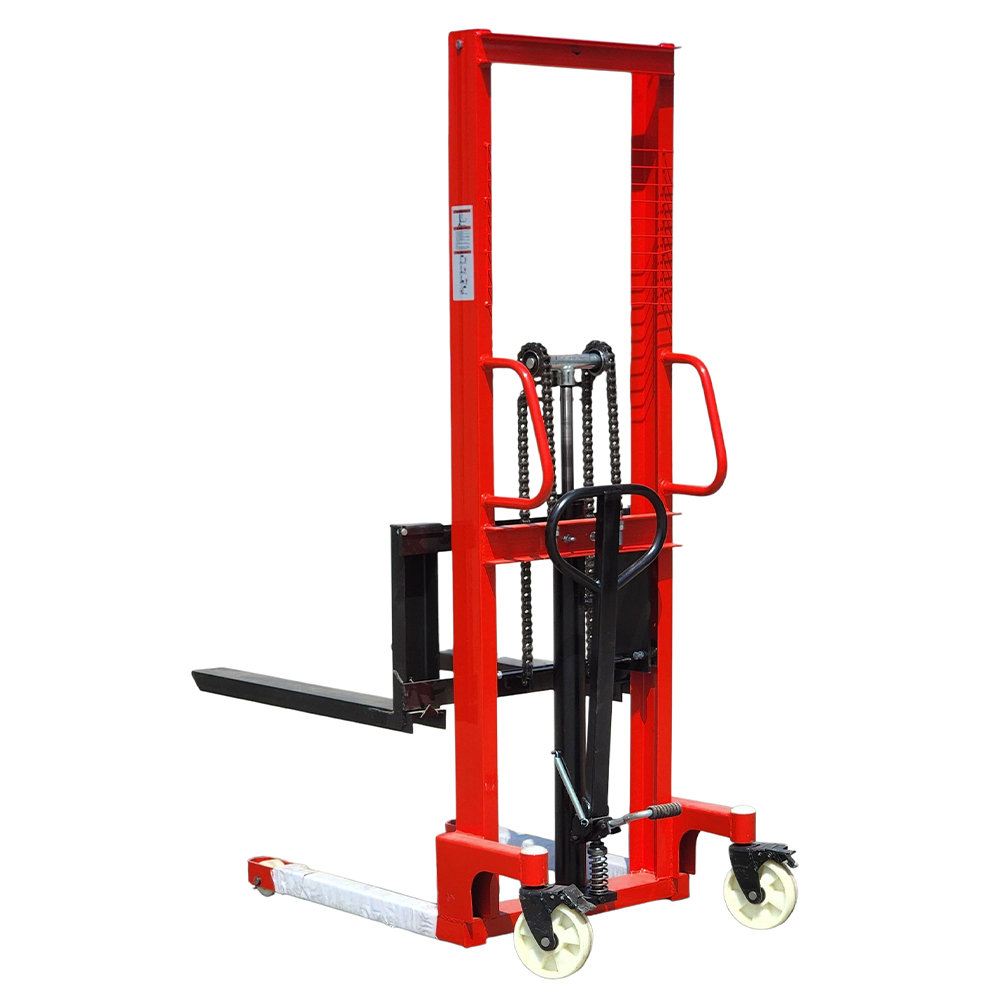

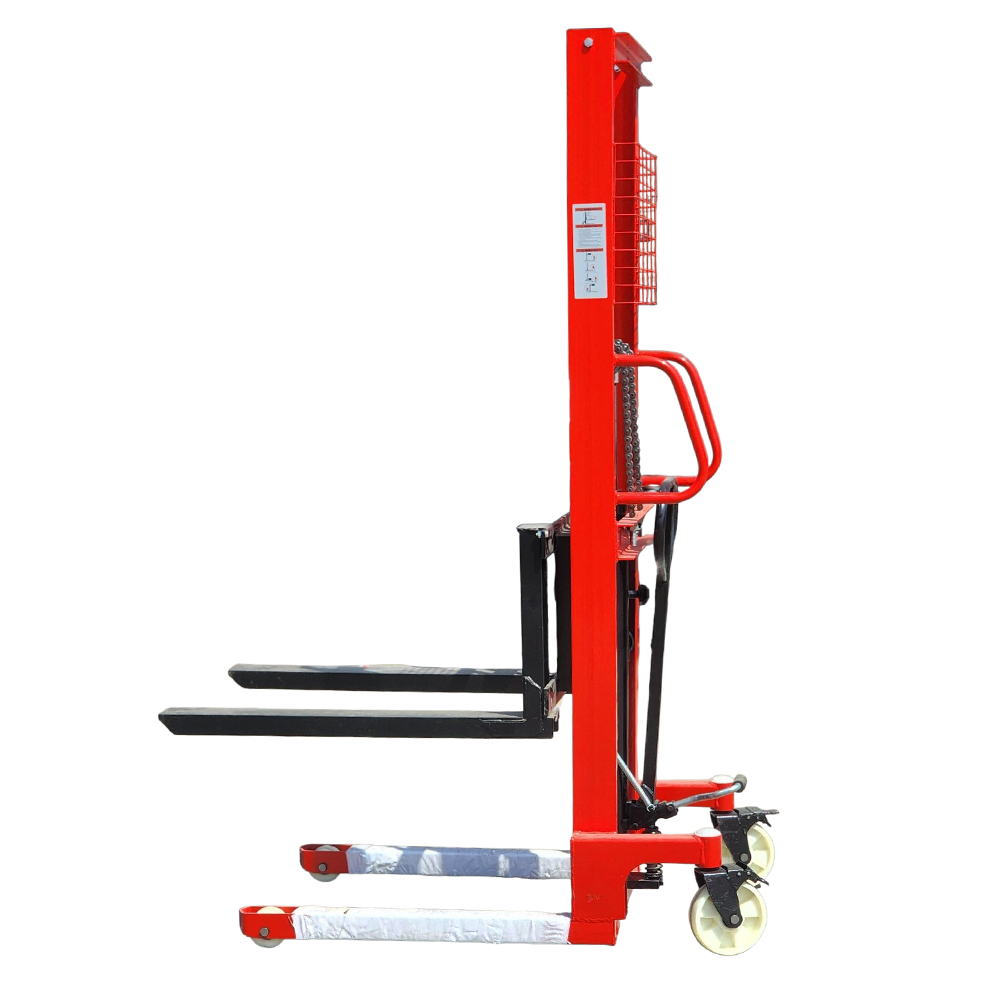

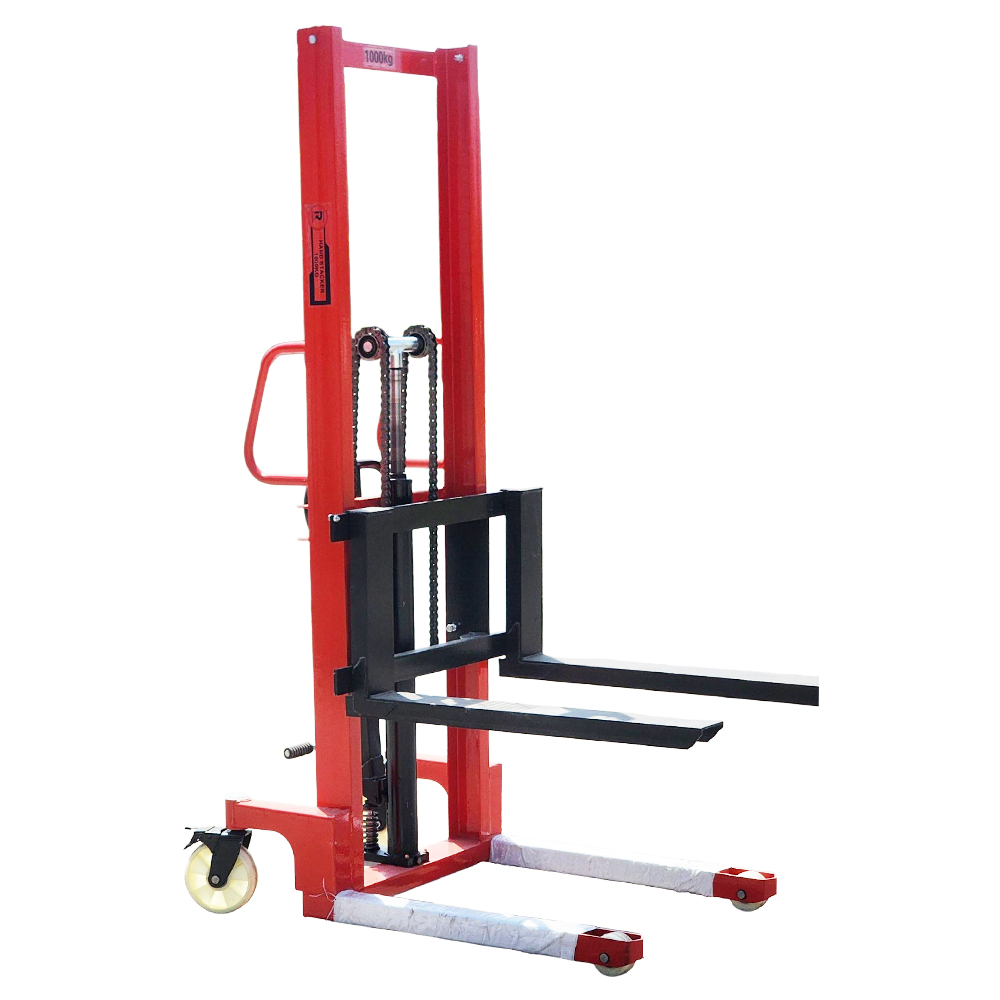

Manual Stacker
Manual Stacker
Manual Stacker
Manual Stacker

Manual Stacker

Rs.32,000.00

Model No. : RE108

Specification:

Cap: 500 kgs
Lifting ht: 1.6 Mtr.
We, the Material Handling Equipment’s solutions provider offer unique range of Hand Stackers at competitive price range. Our Hand Stackers provides a safe and efficient way to endless material application at Distribution Center, Logistics Companies, Industries etc.

Category:
Description

Features:

  • Basic capacity from 500 kg.
  • Lift heights: Mono and telescopic masts from 1.6 Mtr.
  • Special Fork Length & Width.
  • Robust construction.
  • Pump assembly includes neutral position for controlled handling of load.
  • Pistons and cylinder are hard chrome Plated.
  • Double sealed high pressured polyurethane seals are used to prevent leakage.
  • Industry’s Best Warranty – 1 year.
  • Lifting speed – 14 mm/stroke.
  • Our Stackers are suitable, where lifting is primary and the transport distance is short
Product Code RE-108
Rated Capacity Kg 500
Load Center mm 600
Max. Fork Height mm 1600
Fork Length mm 900
Fork Width mm 600
Turning Radius mm 1500
Wheelbase mm 1100
Front Wheel Distance mm
Overall Length mm 1500
Overall Width mm 400 – 865
Overall Height mm 2100
Self-Weight kg 145 Kg Aprox
