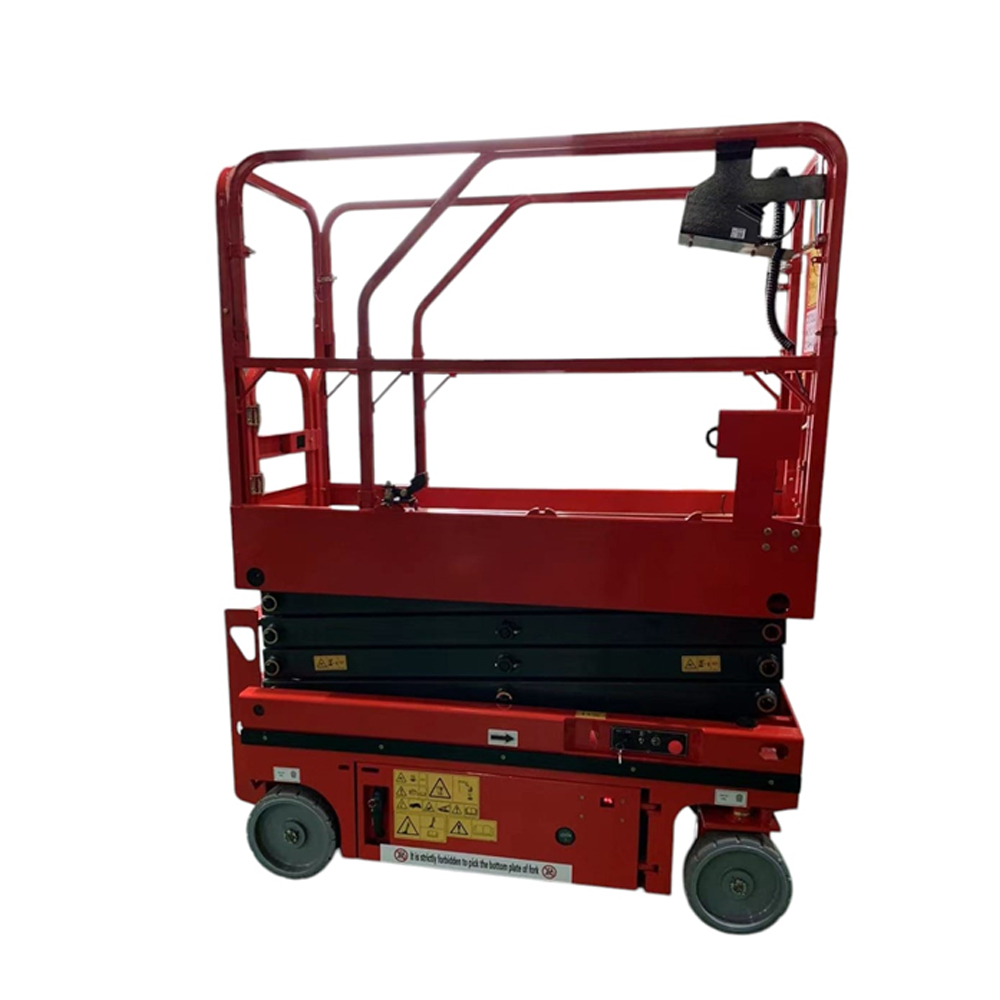

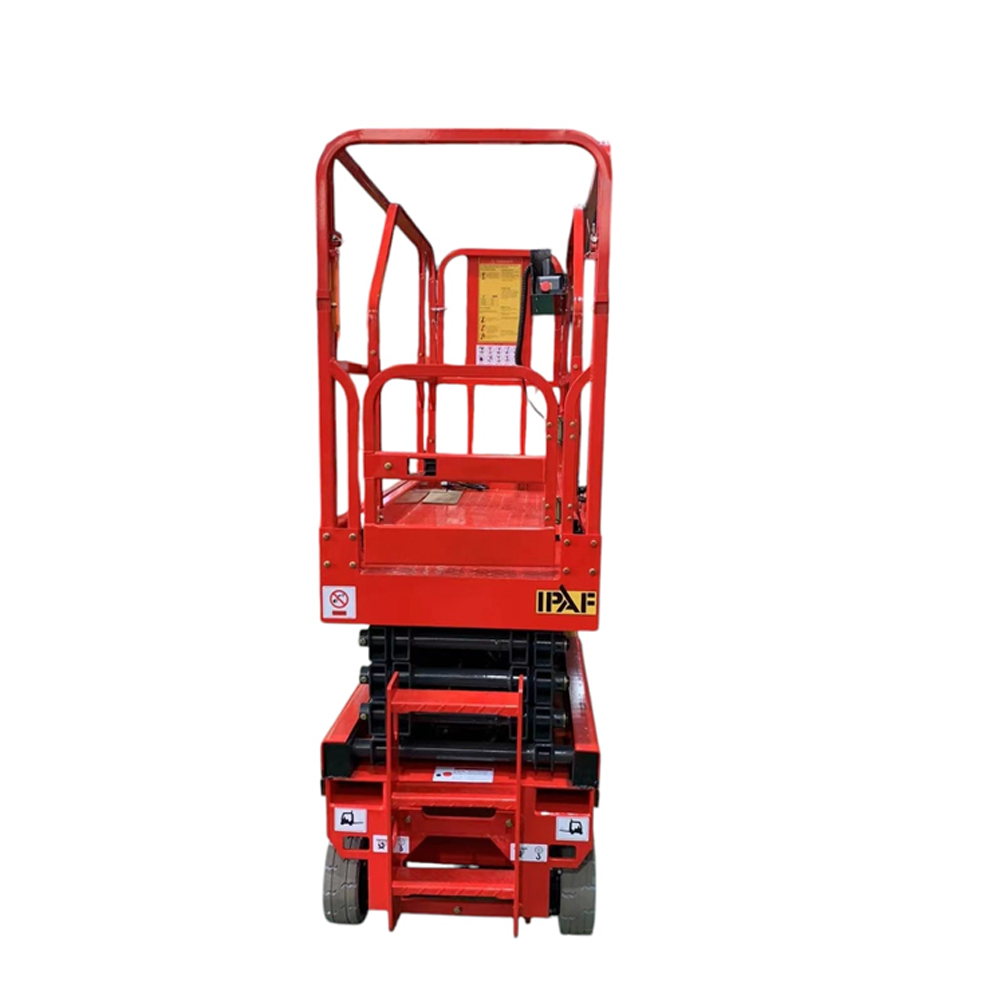

Self Propelled Scissor Lift 6 Mtr
Self Propelled Scissor Lift 6 Mtr
Self Propelled Scissor Lift 6 Mtr

Self Propelled Scissor Lift 6 Mtr

Rs.1,195,000.00

Model No. :RE118-SELF PROPELLED SCISSOR LIFT

Specification:

Cap : 250 KG
Max ht : 6 Mtr

Features

  • Hydraulic pump with built in overload relief.
  • Full length deck beam for maximum support.
  • Solid plate scissor legs for maximum rigidity.
  • Chequered Plate deck and   lip with chain.
  • All pivot points equipped with lubricated nipples.
  • Lowering brake valve to prevent platform free fall.
  • Completely sealed, weather resistant Cylinders and piston.
  • Motor, controls, push button factory pre wired and tested.
Category:
Description
Standard Configuration
Proportional control Automatic brake Buzzer
0.9m Extended platform Automatic pothole Emergency descent
Horn Charging protection Tubing explosion-proof
Emergency stop Platform self-locking door 4*2 drive
Standard transport forklift Fault diagnosis system Seamless tire
Tilt protection system Folding platform railing –



Model 06M
Max working height 7.8m
Max platform height 5.8m
Load capacity 230kg
Extended platform safe working load 113kg
Working platform size (length x width x height) 1.67×0.74×1.1m
Overall dimensions (without guardrail installed) 1.9*0.76*1.11m
Overall dimensions (length x width x height, guardrail not folded) 1.9×0.76×2.18m
Overall dimensions (length x width x height, guardrail folded) 1.9×0.76×1.8m
Extended size of platform 0.9m
Minimum ground clearance (folded/raised state) 0.083/0.016m
Wheelbase 1.36m
Turning radius (outer wheel) 1.64m
Lifting motor 24V/3.3kw
Lifting speed 3-5m/min
Machine travel speed (folded state) 3.5km/h
Machine travel speed (lifting state) 0.8km/h
Battery 4×6V/225ah
Charger 24V/30A
Maximum climbing ability 25%
Maximum allowable working angle 1.5°/3°
Tire size (drive wheel) Φ305×100mm
Total weight 1500kg
