CD Electric Hoist
Price range: Rs.75,000.00 through Rs.135,000.00

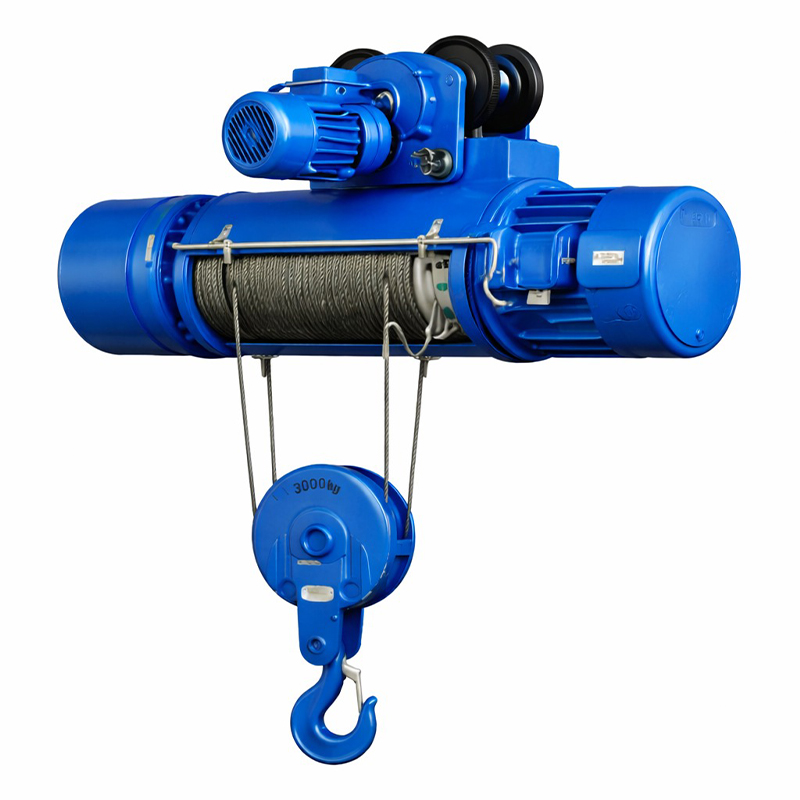

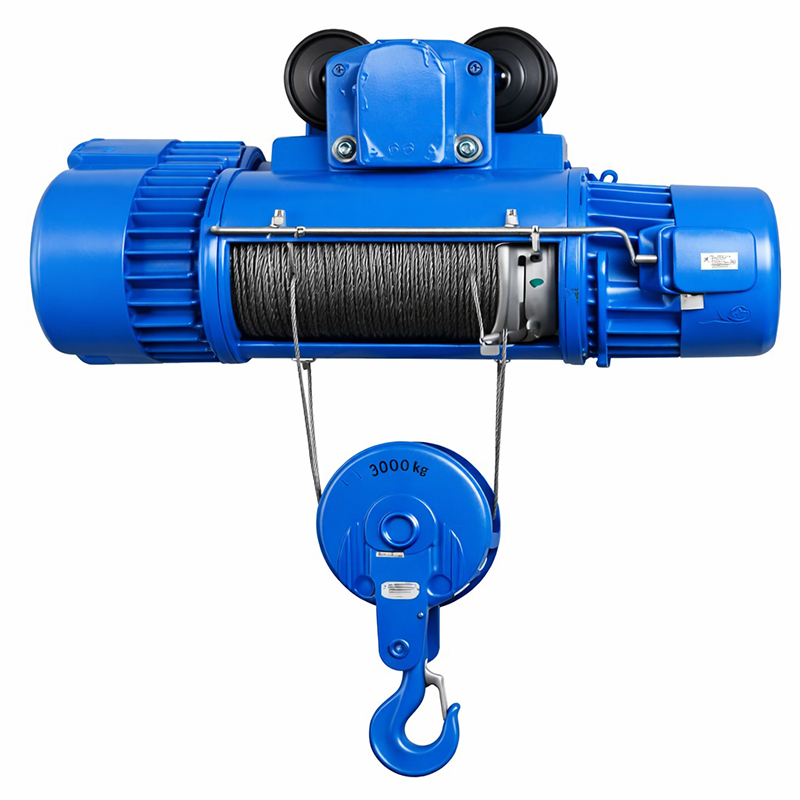

Rudra Equipment CD Electric Wire Rope Hoist is a compact and high-performance lifting solution designed for industrial and material handling applications. Built with a heavy-duty lifting motor, strong steel wire rope, and reliable electric trolley system, it ensures safe and efficient lifting performance. Available in 2T, 3T and 5T capacities with standard 9-meter lifting height, this hoist is widely used in factories, warehouses, ports, mining operations, and construction sites.
Description
| Product Name | CD Electric Wire Rope Hoist – Standard Model | ||
|---|---|---|---|
| Brand | Rudra Equipment | ||
| Model | RE146-CD-2TON | RE146-CD-3TON | RE146-CD-5TON |
| Lifting Capacity | 2 Ton | 3 Ton | 5 Ton |
| Lifting Height | 9 Meter | 9 Meter | 9 Meter |
| Lifting Speed | 8 m/min | 8 m/min | 8 m/min |
| Running Speed | 20 m/min | 20 m/min | 20 m/min |
| Rope Diameter | 11 mm | 13 mm | 15 mm |
| Lifting Motor Power | 3 KW | 4.5 KW | 7.5 KW |
| Lifting Motor RPM | 1380 RPM | 1380 RPM | 1400 RPM |
| Travelling Motor Power | 0.4 KW | 0.4 KW | 0.8 KW |
| Power Supply | 3 Phase, 380V, 50 Hz | ||
| Lifting Frequency | 120 Times Per Hour | ||
| Weight | 232 kg | 297 kg | 495 kg |
| Price | ₹ 75,000 | ₹ 95,000 | ₹ 1,35,000 |
Additional information
| Model | 2T-9MTR, 3T-9MTR, 5T-9MTR |
|---|
