Electric Chain Hoist with Travelling Trolley
Electric Chain Hoist with Travelling Trolley
Electric Chain Hoist with Travelling Trolley

Electric Chain Hoist with Travelling Trolley

Price range: Rs.59,500.00 through Rs.122,500.00

Rudra Equipment HHBB Series Electric Chain Hoist with Travelling Trolley is designed for efficient vertical lifting and smooth horizontal load movement on I-beams. Built with a heavy-duty copper winding motor, alloy steel load chain, and automatic braking system, it ensures safe, reliable, and high-performance lifting. Available in 1T, 2T, 3T and 5T capacities, it is ideal for factories, warehouses, fabrication units, and construction sites.

SKU: N/A Category:
Description
Model Capacity (Ton) Lifting Height (M) Lifting Speed (M/Min) Lifting Motor Power (KW) Motor RPM Phases Voltage (V) Frequency (Hz) Price (₹)
HHBB01T-01 1 Ton 6 6.8 1.5 1440 3 380 50/60 59500
HHBB02T-02 2 Ton 6 3.4 1.5 1440 3 380 50/60 74250
HHBB03T-01 3 Ton 6 5.6 3 1440 3 380 50/60 99500
HHBB05T-02 5 Ton 6 2.6 3 1440 3 380 50/60 122500

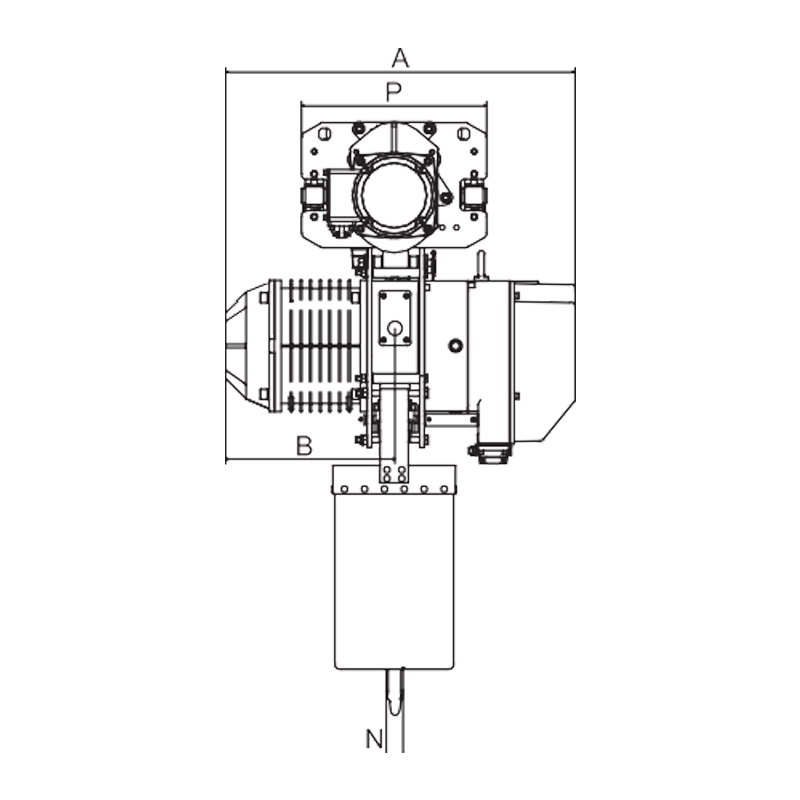

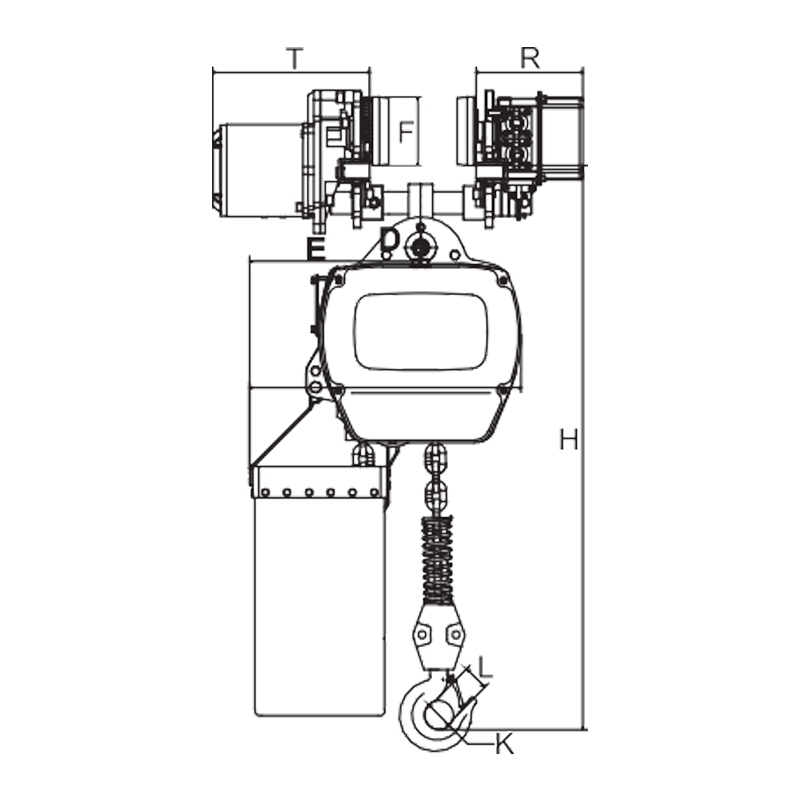

Model Capacity H A B D E F K L N P T I-Beam Size
HHBB01T-01 1 Ton 800 920 260 330 205 Ø50 Ø40 31 245 315 205 68
HHBB02T-02 2 Ton 740 920 260 310 230 Ø110 Ø49 35 300 325 252 168
HHBB03T-01 3 Ton 840 620 310 440 245 Ø150 Ø55 42 350 340 252 168
HHBB05T-02 5 Ton 1015 620 310 440 325 Ø115 Ø60 45 433 400 252 168



Parameter Specification
Motor Power 0.4 – 0.75 KW
Rotation Speed 1440 RPM
Phase 3 Phase
Voltage 380 V
Frequency 50/60 Hz
Additional information
Model

HHBB01T-01, HHBB02T-02, HHBB03T-01, HHBB05T-02
