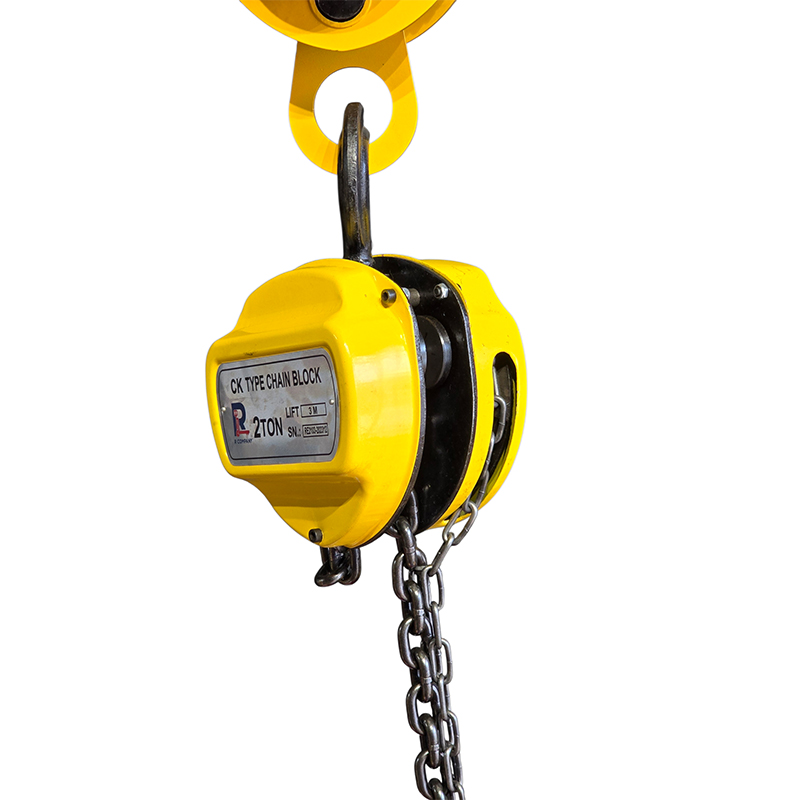

Chain Pulley Block
Chain Pulley Block

Chain Pulley Block

Rs.4,700.00

Model No. : RE147

Features:

  • Heavy Duty: Class II Manufactured as per IS
  • Tested at: 50% Overload
  • Hooks: As per IS: specs
  • Load Chain: 6 mm, Grade 80, Alloy Steel Material
Category:
Description
PRODUCT LOAD CHAIN EXTRA PER MTR CHAIN DETAILS PRICE (INR)
1 TON — 3 MTR single fall big hook, round pully PER MTR CHAIN – 300 RS load chain: G80 standard; diameter: 6mm 4,700
1 TON — 6 MTR single fall big hook, round pully PER MTR CHAIN – 300 RS load chain: G80 standard; diameter: 8mm 6,000
2 TON — 3 MTR single fall big hook, round pully PER MTR CHAIN – 300 RS load chain: G80 standard; diameter: 8mm 6,800
2 TON — 6 MTR single fall big hook, round pully PER MTR CHAIN – 300 RS load chain: G80 standard; diameter: 8mm 9,000
3 TON — 3 MTR double fall big hook, round pully PER MTR CHAIN – 300 RS load chain: G80 standard; diameter: 8mm × 2 9,000
3 TON — 6 MTR double fall big hook, round pully PER MTR CHAIN – 300 RS load chain: G80 standard; diameter: 8mm × 2 12,000
5 TON — 3 MTR double fall big hook, round pully PER MTR CHAIN – 750 RS load chain: G80 standard; diameter: 10mm × 2 13,000
5 TON — 6 MTR double fall big hook, round pully PER MTR CHAIN – 750 RS load chain: G80 standard; diameter: 10mm × 2 17,000
10 TON — 3 MTR double fall big hook, round pully PER MTR CHAIN – 750 RS load chain: G80 standard; diameter: 10mm × 4 26,500
10 TON — 6 MTR double fall big hook, round pully PER MTR CHAIN – 750 RS load chain: G80 standard; diameter: 10mm × 4 30,500
  • Load Chain Wheel: S.G. Iron Casting – Accurately pocketed, internally grinded for longer life of Main Shaft
  • Braking Mechanism: Screw & Friction Disc Type – Self actuating
  • Hand Chain Wheel: Pressed Steel – Accurately pocketed, Smooth Hand chain Pulling operation
  • Gears: Alloy Steel Material, precise machined, gear hobbed & case hardened – duly annealed. Gears shall be lubricated with a semi-liquid grease instead of oil, which is less likely to leak, eliminates oil level checks and clings to the gears even after long idle periods.
  • Design Type Test: Accomplished successfully as per the requirement of IS: 3832 -2005 (4 times load – lifted for 5 minutes – Once at the time of design stage)
  • Endurance Type Test: Accomplished successfully as per the requirement of IS: 3832 – 2005 (100 Hrs. running on Block at speed of Hand Chain of 20 Mtr./Min – Once in Six Months)
