Monkey Crane 500 KG
Monkey Crane 500 KG
Monkey Crane 500 KG

Monkey Crane 500 KG

Rs.30,000.00

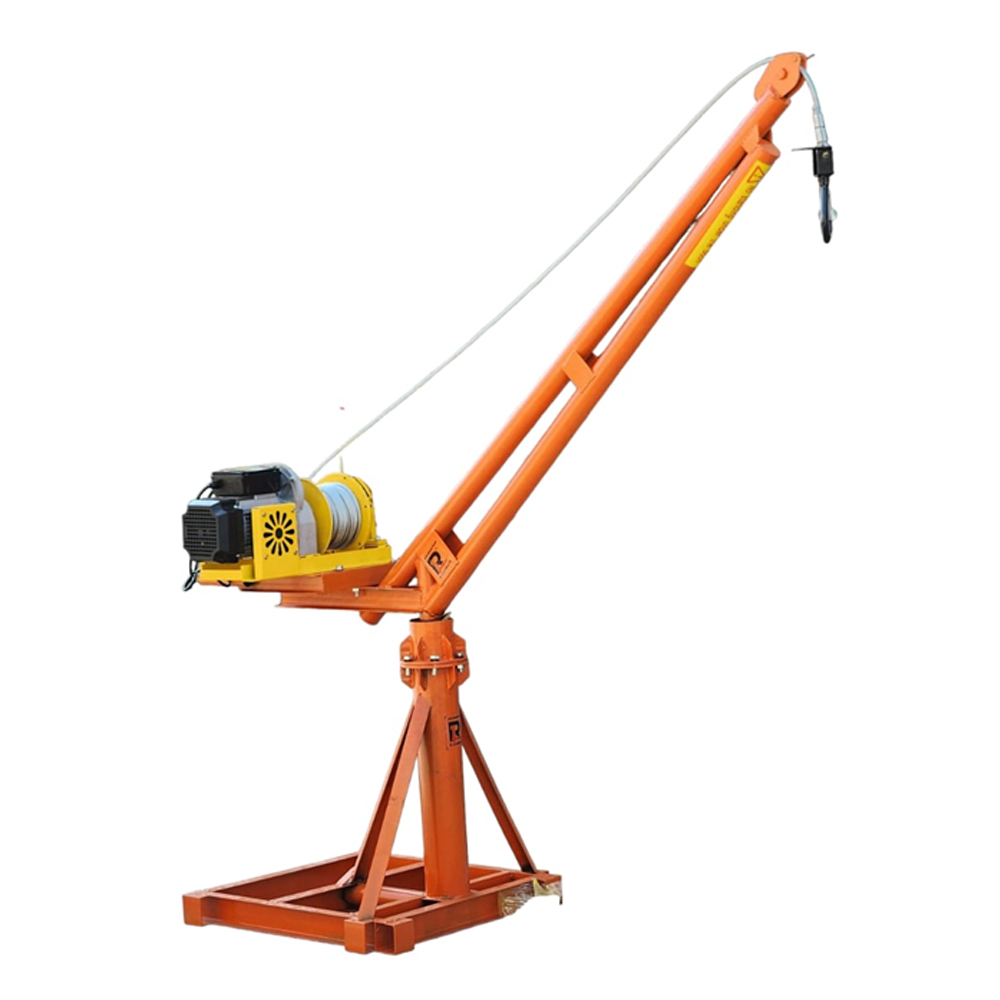

The R COMPANY 500 KG Capacity 360° Mini Crane with an Electric Clutch Winch features a 40M wire rope (8mm diameter) for efficient lifting. Its compact design and 360° rotation make it ideal for civil construction, rooftop work, marine, and underground applications with easy operation and minimal maintenance.

Category:
Description

Description

The 360° Mini Crane Electric Hoist Structure is a device that has been made to function well with little upkeep. Users of the 360° Mini Crane Electric Hoist Structure receive magnetic lifting strength, including the ability for one side to expand and retract utilizing straightforward, user-friendly mechanics.

This machine is small and compact in size.

Easy to operate and can be used in smaller areas.

Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.

Features
• This machine is small and compact in size.
• Easy to operate and can be used in smaller areas.
• Strong and heavy motor.
• Heavy and thicker wire rope.
Specification
Model Number RE-124/500KG
Product Type Mini Crane
Brand R COMPANY
Rotation Angle 360°
Phase Single Phase
Motor 3 HP
Winding 100% Copper Winding
Load Capacity 500 kg
Rated Voltage 220V
Clutch System Yes
Wire Rope Length 40 meters
Wire Rope Diameter 8 mm
Maximum Lifting Height 40 meters
Continuous Working Capacity 2 hrs. (Approx.)
Speed 7-14 meters per minute

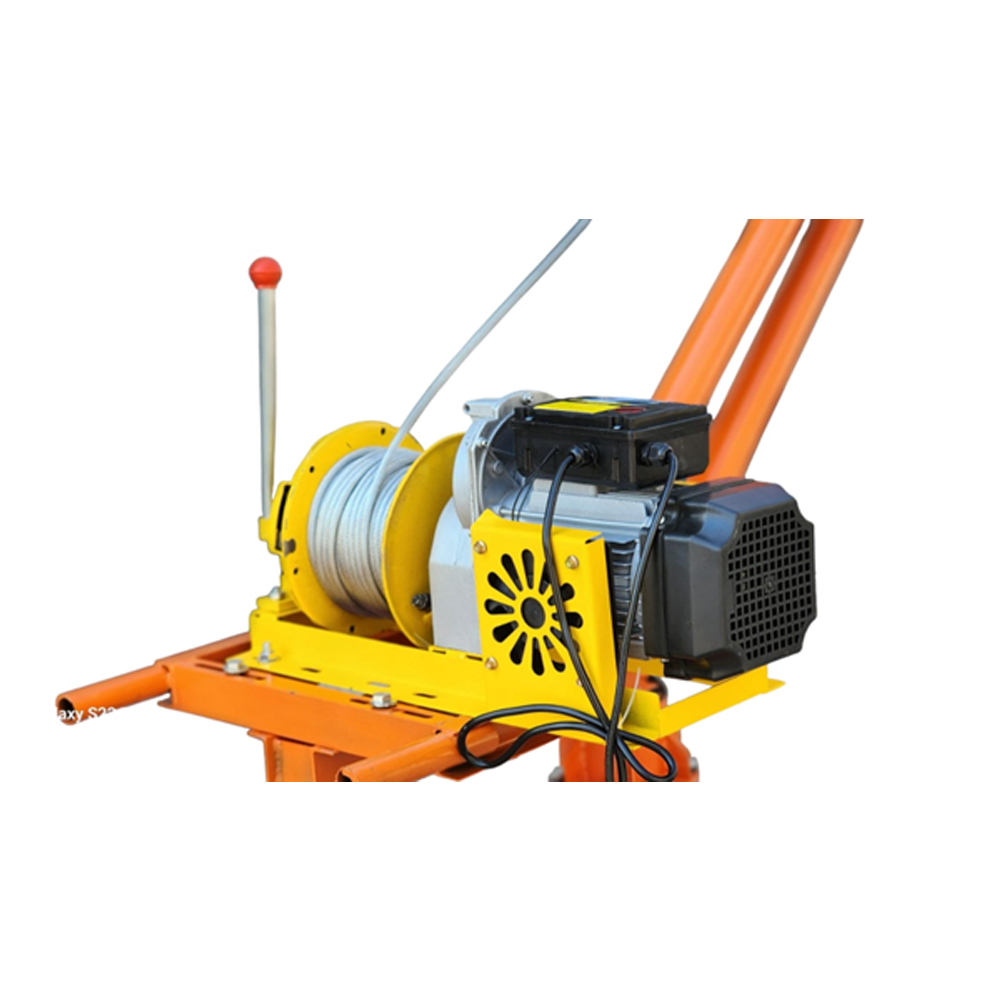

Specifications (Electric Clutch Winch)
Product Type Electric Winch Machine
Clutch System Yes
Phase Single
Voltage 220 V
Lifting Capacity (Single/Double-Wire Rope) 500/1000 kg
Lifting Height (Single Hook) 20 meters
Lifting Height (Double Hook) 40 meters
